In today's digital world, technology evolves rapidly, and staying updated with the latest components is crucial. Networking is a fundamental aspect of modern technology, enabling seamless communication and data transfer. One such component that often comes up in discussions about networking is the SFP. But what exactly is an SFP, and why is it important? Let's dive into this comprehensive guide to understand SFP, its uses, and its significance.
What is an SFP?

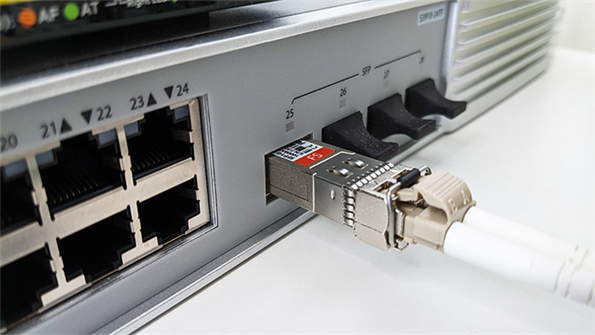

SFP stands for Small Form-factor Pluggable. It'sWhat is Ethernet SFP a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The SFP connects network devices like switches, routers, and fiber optic cables, allowing for the transmission of data over fiber optic or copper networks.
SFP Meaning and Functionality
The SFP transceiver functions as a modular interface that enables a switch or router to connect to a variety of fiber optic or copper cables. This adaptability makes it a versatile solution for network expansion and enhancement. By providing a standardized interface, SFPs can accommodate various types of media, which in turn supports different network configurations and technologies. The SFP modules can support different communication standards, allowing for flexibility in network design. This modularity is particularly beneficial in environments where network requirements may change over time, offering a future-proof solution.
Evolution of SFP Modules
Over the years, SFP modules have evolved to support increasing data rates and distances. The original SFP modules were designed to support speeds up to 1 Gbps, but advancements have led to the development of SFP+ and QSFP modules, which can handle speeds of 10 Gbps and beyond. This evolution has been driven by the growing demand for faster and more reliable data transmission in both enterprise and service provider networks. As technology continues to advance, we can expect further innovations in SFP technology, potentially enabling even higher speeds and more efficient data transfer methods.
SFP vs. Other Transceiver Types
While SFP modules are widely used, they are not the only type of transceiver available. Other common types include GBIC, XFP, and QSFP. GBIC, or Gigabit Interface Converter, was one of the first types of pluggable transceivers but has largely been replaced by SFP due to its larger size. XFP modules support 10 Gbps speeds but are bulkier compared to SFP+. QSFP, or Quad Small Form-factor Pluggable, is designed for high-density applications and can support speeds up to 40 Gbps or even 100 Gbps in the case of QSFP28. Each type has its advantages and is suited to specific applications, but SFPs remain popular due to their compact size and versatility.
Types of SFP Modules
SFP modules are designed to support a variety of transmission speeds and distances. Let's take a look at some common types:
Single-mode vs. Multi-mode SFPs
Single-mode and multi-mode SFPs are designed for different transmission needs. Single-mode SFPs are used for long-distance data transmission, typically over miles, utilizing a single light path to minimize signal loss. On the other hand, multi-mode SFPs are optimal for short-distance communication, using multiple light paths which can lead to higher dispersion but are adequate for data centers and campuses. Understanding these differences is crucial for network planning and ensuring optimal performance.
Single-mode SFP
Single-mode SFPs are used for long-distance data transmission. They use a single light path, allowing them to transmit data over greater distances without signal loss. These modules are typically used in telecommunication networks. Their ability to maintain signal integrity over long distances makes them ideal for connecting remote data centers and facilitating communication between different geographic locations. The cost of single-mode fiber and transceivers can be higher, but the investment is justified by their performance in long-haul applications.
Multi-mode SFP
Multi-mode SFPs, on the other hand, are used for short-distance communication. They utilize multiple light paths, which makes them more suitable for data centers and campus networks where the distance is not a major concern. Multi-mode fibers are generally cheaper than single-mode fibers, making them a cost-effective choice for environments where high-speed data transfer is needed within a limited range. The ability to handle multiple data streams simultaneously can also enhance network performance in these settings.
Copper SFP
Copper SFPs are used for short-range data transmission over copper cables, like Cat5 or Cat6. These are often used in local area networks (LANs) for their cost-effectiveness and ease of use. Copper SFPs support data rates up to 1 Gbps, making them suitable for most office environments where high-speed internet is essential. They are also easy to install and maintain, requiring no special equipment or expertise, which is why they are popular in small to medium-sized businesses.
Bi-directional (BiDi) SFP
BiDi SFPs use a single fiber strand to transmit and receive data, which reduces the amount of fiber needed. This type of SFP is beneficial in situations where fiber infrastructure is limited. By using different wavelengths for sending and receiving data, BiDi SFPs optimize the existing fiber infrastructure, reducing costs and complexity. They are particularly useful in metropolitan area networks (MANs) and other applications where maximizing fiber usage is crucial.
DWDM and CWDM SFP
DWDM (Dense Wavelength Division Multiplexing) and CWDM (Coarse Wavelength Division Multiplexing) SFPs enable multiple data streams to be transmitted over a single fiber by using different wavelengths. DWDM SFPs are used in high-capacity, long-distance networks, while CWDM SFPs are suitable for shorter distances with moderate data requirements. These technologies are essential for service providers who need to maximize their fiber infrastructure's capacity without laying additional fiber, providing a scalable solution for network expansion.
Why Are SFPs Important?
SFPs play a crucial role in network connectivity and efficiency. Here are some reasons why they are important:
Flexibility and Scalability
SFP modules provide flexibility in network architecture. By simply swapping out SFPs, you can upgrade your network speed or change your transmission medium without replacing the entire switch or router. This modularity allows businesses to adapt to changing technology and data demands without significant disruptions. As businesses grow, the ability to scale network capabilities by upgrading individual components rather than entire systems offers a cost-effective and efficient solution.
Cost-effectiveness
Using SFPs can be more cost-effective than overhauling network equipment. They allow for incremental upgrades, which means you can improve network performance over time without large capital investments. This pay-as-you-grow approach aligns with budgetary constraints, enabling organizations to allocate resources more effectively. Additionally, the ability to extend the life of existing hardware by upgrading transceivers rather than replacing entire devices contributes to sustainability and reduces electronic waste.
Enhanced Performance
SFPs can enhance network performance by supporting high-speed data transfer and reducing latency. This is essential for businesses that rely on fast and reliable internet connectivity for their operations. Whether it's for real-time data processing, cloud services, or online collaboration, the performance enhancements provided by SFPs can lead to increased productivity and improved user experience. By optimizing data flow and minimizing delays, SFPs ensure that critical applications run smoothly and efficiently.
Versatility Across Industries
The versatility of SFP modules makes them suitable for a wide range of industries and applications. From telecommunications and data centers to healthcare and manufacturing, SFPs provide the connectivity needed to support various technological demands. Their ability to work with different network types and standards makes them indispensable for organizations looking to maintain a competitive edge in today's fast-paced digital landscape. As industries continue to evolve, the role of SFPs in enabling innovation and efficiency will only become more pronounced.
Environmental Impact
By enabling network upgrades without replacing entire systems, SFPs contribute to reducing electronic waste. This environmentally friendly approach aligns with the growing emphasis on sustainability in technology. As organizations strive to minimize their ecological footprint, the use of modular components like SFPs allows for responsible resource management. This not only benefits the environment but also enhances the organization's reputation as a leader in sustainable practices.
How to Choose the Right SFP Module
Choosing the right SFP module depends on several factors. Here's what you need to consider:
Transmission Distance
Determine the distance over which you need to transmit data. Use single-mode SFPs for long distances and multi-mode SFPs for shorter distances. Understanding the specific requirements of your network is crucial for selecting the appropriate SFP type. Factors such as building layout, geographical separation, and future expansion plans should be considered when assessing transmission needs. By matching the SFP module to the intended distance, you ensure optimal performance and reliability.
Data Rate
The required data rate is crucial in choosing an SFP. Make sure the SFP module supports the data rate your network equipment is capable of handling. Consider current and future data demands, as well as any planned network upgrades, to ensure compatibility and prevent bottlenecks. By selecting an SFP that aligns with your network's capabilities, you can maximize efficiency and take full advantage of your infrastructure's potential. Assessing data rate requirements also involves understanding the types of applications running on the network and their specific bandwidth needs.
Compatibility
Ensure the SFP module is compatible with your network equipment. Check the manufacturer's specifications for supported SFP types. Incompatible SFPs can lead to connectivity issues and degraded network performance, so it's essential to verify compatibility before making a purchase. Considerations should include the brand, model, and firmware version of your networking equipment, as well as any specific interoperability requirements. By conducting thorough research and consulting with vendors, you can avoid potential pitfalls and ensure seamless integration.
Budget
Consider your budget when selecting SFP modules. While some SFPs are more expensive, they might offer better performance or longer life spans. Balancing cost with performance and reliability is key to making an informed decision. Evaluate the total cost of ownership, including factors such as maintenance, support, and potential upgrades, to determine the best value for your investment. By aligning your SFP choices with your budgetary constraints and performance expectations, you can achieve a cost-effective solution that meets your network's needs.
Vendor Support and Warranty
Evaluate the level of support and warranty offered by the vendor when selecting SFP modules. Reliable customer support and comprehensive warranties can provide peace of mind and ensure that any issues are promptly addressed. Consider the vendor's reputation, responsiveness, and ability to provide timely replacements or repairs. By choosing a vendor with a strong support infrastructure, you can minimize downtime and maintain network reliability.
Installing and Replacing SFP Modules
Installing or replacing an SFP module is straightforward. Follow these steps for a hassle-free installation:
-
1. Power Down the Equipment: Before inserting or removing an SFP module, ensure the device is powered off to prevent damage. This precaution protects both the SFP and the networking equipment from electrical surges that could cause malfunctions or permanent damage.
-
2. Remove the SFP Module: If replacing, gently pull the module's release latch to remove the existing SFP. Handle the module carefully to avoid damaging the connectors or components. Proper handling is crucial for maintaining the integrity of the SFP and ensuring a smooth replacement process.
-
3. Insert the New Module: Align the new SFP module with the port and gently push it in until it clicks into place. Ensure a secure connection by verifying that the module is fully seated in the port. Proper alignment and insertion are essential for optimal performance and to prevent connectivity issues.
-
4. Connect the Cable: Attach the appropriate fiber optic or copper cable to the SFP module. Ensure the cable is compatible with the SFP type and that connectors are clean and undamaged. Secure connections are vital for maintaining signal integrity and preventing data loss.
-
5. Power Up the Equipment: Turn the device back on and verify that the SFP is functioning correctly. Monitor network performance and connectivity to ensure the new module is operating as expected. Testing and verification are important steps in confirming the successful installation of the SFP.
Best Practices for SFP Installation
Adhering to best practices during SFP installation can prevent issues and ensure optimal performance. Always handle SFP modules with care, using antistatic precautions to avoid damaging sensitive components. Label cables and ports clearly to facilitate future maintenance and troubleshooting. By following these guidelines, you can maintain a reliable network infrastructure and minimize potential disruptions.
Troubleshooting SFP Issues
Despite careful installation, issues may arise with SFP modules. Common problems include compatibility conflicts, signal loss, and incorrect installation. Regular maintenance, such as cleaning connectors and inspecting cables for damage, can prevent many of these issues. If problems persist, consulting with the vendor or a network specialist can help identify and resolve the underlying causes.
Maintenance and Monitoring
Regular maintenance and monitoring of SFP modules can extend their lifespan and ensure consistent performance. Implement a schedule for inspecting and cleaning connectors, checking for firmware updates, and assessing network performance. By proactively managing your SFPs, you can detect potential issues early and prevent costly downtime.
Common Issues with SFP Modules
While SFPs are reliable, issues can occur. Here are some common problems and their solutions:
Compatibility Issues
Sometimes SFP modules aren't compatible with the equipment. Always verify compatibility before purchasing. Incompatibility can lead to poor performance or complete failure to establish a connection. To avoid this, consult with the equipment manufacturer or vendor to ensure the SFP module meets the necessary specifications. By confirming compatibility in advance, you can prevent disruptions and maintain network stability.
Signal Loss
Signal loss can occur due to dirty or damaged connectors. Regularly clean connectors and inspect cables for damage. Dust, dirt, and debris can accumulate on connectors, leading to increased attenuation and reduced signal quality. Using appropriate cleaning tools and techniques can help maintain optimal performance. Additionally, inspecting cables for physical damage, such as bends or breaks, can prevent signal degradation and improve reliability.
Incorrect Installation
Improper installation can prevent SFPs from functioning. Ensure the module is fully seated in the port. Misalignment or incomplete insertion can lead to connectivity issues and reduced performance. Double-checking the installation process and following manufacturer guidelines can help prevent these problems. If issues persist, consulting with a network specialist may be necessary to diagnose and resolve the problem.
Firmware and Software Conflicts
Firmware and software conflicts can impact SFP performance and compatibility. Ensure that your networking equipment is running the latest firmware and software versions. Regularly updating firmware can resolve known issues and improve compatibility with new SFP modules. Staying informed about updates and implementing them promptly can enhance network stability and performance.
Conclusion
Understanding SFP modules is essential for anyone involved in networking. These versatile devices offer flexibility, scalability, and cost-effective solutions for improving network performance. By choosing the right SFP module, you can ensure your network operates efficiently and meets your specific needs. Whether you're upgrading an existing network or planning a new installation, SFPs are a valuable component to consider.
In conclusion, embracing the capabilities of SFP modules can lead to enhanced network performance, providing your business with the connectivity it needs to succeed in today's digital world. As technology continues to evolve, staying informed and adaptable will enable you to leverage the full potential of your network infrastructure. By making informed decisions and investing in the right components, you can create a robust and future-proof network that supports your organization's growth and innovation.
