Power over Ethernet (PoE) technology enables a single Ethernet cable to deliver both power and data, streamlining installations for modern devices. In 2025, Power over Ethernet (PoE) is especially valuable for supporting wireless access points, security cameras, and smart sensors, as it reduces the need for extra wiring and lowers installation costs.

• • Power over Ethernet (PoE) simplifies wiring and allows you to position devices almost anywhere, even in hard-to-reach locations.
• • Centralized power management with Power over Ethernet (PoE) makes backup and control more efficient.
• • The latest Power over Ethernet (PoE) standards can support larger devices, such as laptops and building automation systems.

Key Takeaways

• • Power over Ethernet (PoE) uses one cable for power and data. This makes setting up devices easier. It also lowers the cost of wires.
• • There are different PoE standards. Each standard gives a different amount of power. You can use PoE for small things like phones. You can also use it for bigger things like laptops or digital signs.
• • You need the right Ethernet cables for PoE. Cat6 or better cables work best. These cables help send power safely. They also work well for devices that need more power.
• • PoE helps save energy. It also lowers the cost to install devices. You can control power from one place. This makes networks easier to manage and grow.
• • PoE works with many smart devices at home or work. It helps build networks that are flexible and save energy. These networks are ready for the future.

Power over Ethernet(PoE) Overview

What Is PoE

Power over Ethernet(PoE) lets one Ethernet cable send both power and data. This means you do not need a separate power cord for each device. It makes setting up devices easier and saves money. Devices like wireless access points, security cameras, and IP phones can get power and data from the same cable. Power over Ethernet(PoE) uses twisted-pair copper cables. This helps you put devices in more places and keeps network spaces less messy.

How PoE Works

Power over Ethernet(PoE) sends direct current (DC) power and data through Ethernet cables. There are two main parts: Power Sourcing Equipment (PSE), like PoE switches or injectors, and Powered Devices (PD), like cameras or phones. The PSE checks if the device can use Power over Ethernet(PoE) by looking for a special resistor inside the PD. If it finds the resistor, the PSE sends safe power, usually between 48V and 56V DC, through the cable.

Power over Ethernet(PoE) uses two wiring ways called Mode A and Mode B. Mode A sends power and data on the same wires. Mode B uses extra wires for power. Newer standards can use all four wire pairs to give more power. The system has safety features, like overload and short circuit protection, to stop damage. The longest cable you can use is 100 meters. This keeps power and data working well.

Tip: Power over Ethernet(PoE) networks let you control power from one place. This makes it easy to manage and back up devices.

PoE Standards

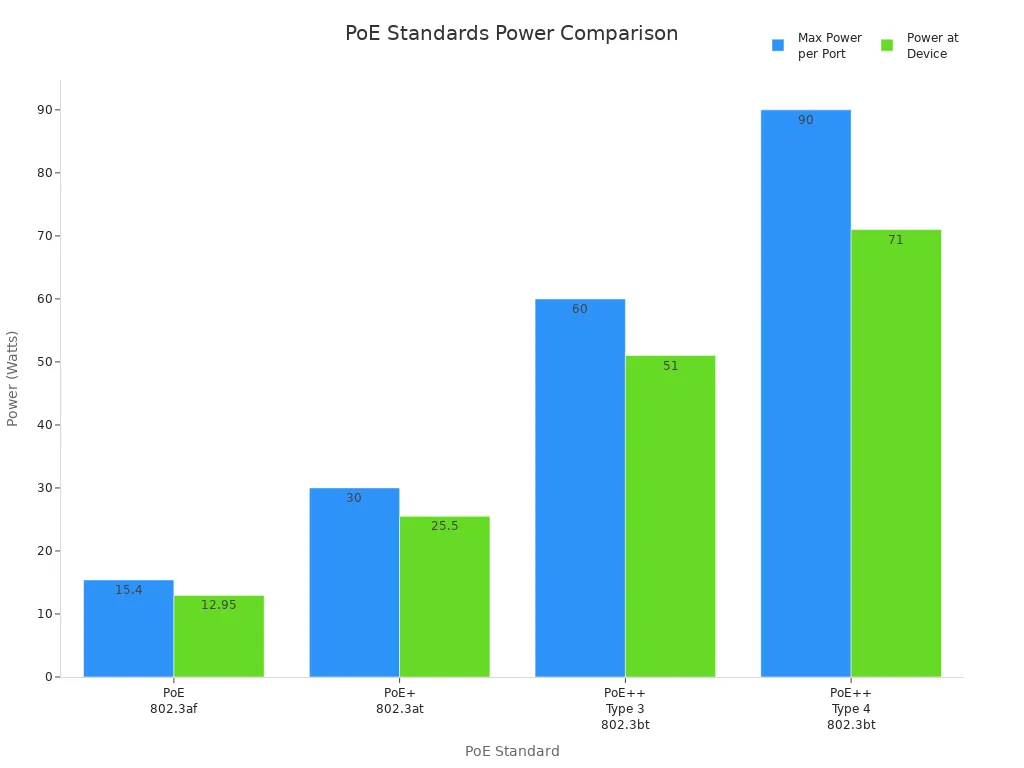

There are several standards for how Power over Ethernet(PoE) gives power and data. These rules make sure devices from different brands work together safely. The main standards in 2025 are IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++). Each standard gives different amounts of power and works with different devices.

The newest standard, IEEE 802.3bt (PoE++), can give up to 100W at the source and about 71W to the device. This lets Power over Ethernet(PoE) power bigger things, like laptops and digital signs. All standards have safety features, like checking devices and limiting current, to keep the network and devices safe.

Key Terms and Types

PSE and PD

Every Power over Ethernet(PoE) network has two main device types. Power Sourcing Equipment (PSE) gives DC power and data through Ethernet cables. Some examples are PoE switches, injectors, and network video recorders. Powered Devices (PD) get power from the PSE and use it to work. IP cameras, wireless access points, and VoIP phones are all PDs.

Note: PSE devices watch for overloads and shorts. They stop power if there is a problem. This keeps the network safe.

PoE, PoE+, PoE++

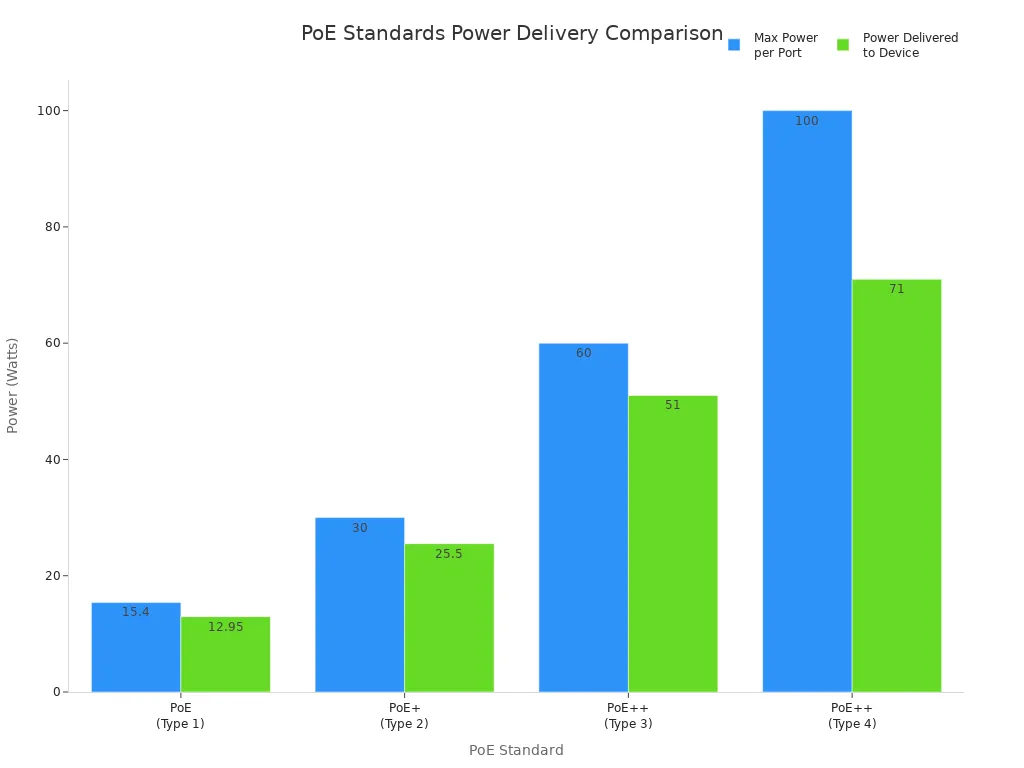

PoE technology has different types for different power needs. The main types are PoE (Type 1), PoE+ (Type 2), and PoE++ (Types 3 and 4). Each type follows an IEEE rule and gives a set amount of power.

PoE++ (Type 4) gives the most power. It is good for things like laptops and digital signs. Each higher type lets bigger devices run from the network cable.

Cable Requirements

The kind and quality of Ethernet cable matter for PoE. For basic PoE (Type 1), Category 3 cables can work. But Category 5 or better is better. PoE+ (Type 2) needs at least Category 5 cables. For PoE++ (Types 3 and 4), Cat6, Cat6a, or Cat7 cables are best. These cables carry more power and stay cooler.

• • Pure copper cables are best for Power over Ethernet(PoE). They have less resistance and last longer.
• • Shielded cables help with heat and block noise, especially in big bundles.
• • Keep cable runs under 100 meters. This stops power loss and keeps signals strong.

Benefits and Limitations

Advantages

Power over Ethernet(PoE) has many good points for homes and businesses. It lets one cable carry both power and data. This makes setting up devices easier and keeps things neat. You do not need extra wires or outlets. This saves money on materials and work. Even though PoE switches cost more at first, you save on other costs later.

• • PoE cables help save money by using one cable for power and data.
• • You can control power from one place. This means you can fix problems without sending someone out.
• • You can put devices almost anywhere. This helps when you want to grow your office.
• • Using PoE can save up to half the energy compared to old wiring. Yearly costs can go down by 14%.
• • Some PoE cables work very well and waste little energy.

PoE gives you more choices. You can put devices in places without power outlets. This makes it easy to change or add things. PoE extenders let you use longer cables if needed. Using PoE switches makes your network stronger and easier to grow. These things make PoE fast to set up and good for many places.

PoE is also better for the environment. It uses fewer wires, so there is less waste. It helps buildings use less energy and lowers pollution from networks.

Disadvantages

PoE is great, but it does have some problems. The hardware can be tricky, especially for big or strong systems.

• • You need special switches or PoE injectors if your switch is old.
• • Each switch can only power a certain number of devices.
• • You must use the right cables, like Cat 5e, Cat 6, or Cat 6a.
• • You might need extra tools, like splitters or extenders, for some devices or long cables.

Long cables can waste energy. If the cable is too long, less power gets to the device. This can make devices not work right, especially if they need a lot of power. Here are some things that affect how well PoE uses energy:

It can also be hard to add more devices. Each switch has a power limit. Lots of switches together can get hot and need cooling. When devices turn on, they can use too much power at once. This can make switches restart or not work. The connectors can wear out over time and cause problems. For important jobs, you need backup plans and good power checks.

Other problems you might see are:

• • PoE only works up to 100 meters. Big devices may need shorter cables.
• • Devices that do not support PoE need extra tools, which makes things harder.
• • Too many devices or wrong cables can cause power problems and make the network unstable.
• • Cables and devices can get too hot or lose power, which can shut things down or be unsafe.

Devices and Applications

Supported Devices

Many devices in 2025 use PoE for power and data. Some examples are:

• • IP cameras, even ones that can move and zoom
• • Wireless access points for fast internet
• • VoIP phones and IP phones for talking clearly
• • Monitors and LCD screens for digital signs
• • Door access systems and card readers for security
• • Network audio and intercoms for sound
• • LED lighting for smart buildings
• • Video conferencing equipment for meetings
• • Robotic and surveillance cameras for watching places

Big devices like digital signs, LED lights, and high-resolution security cameras use the newest PoE standards. These devices can get up to 100 watts of power. This helps them do things like track motion with AI and see wide areas with many sensors.

Use Cases

PoE is used for many things in smart buildings and offices. Facility managers use PoE to power IoT devices. These include nurse call buttons, alarms, access systems, presence sensors, HVAC controls, and asset trackers. PoE helps with smart lighting and sensors that know when people are there. This saves energy and makes rooms more comfortable.

PoE can also power smartphones, tablets, and mobile computers. These do not need special power adapters. One cable gives both power and data, so setup is simple and costs less. It is easier to manage devices this way. Central control lets you fix problems fast and upgrade devices easily.

For security, PoE cameras give strong connections and smart features. They work in bad weather, see at night, and spot movement. You can set them up quickly and control power from one place. This is good for big buildings with lots of cameras.

Facility managers like PoE because it makes setting up easier, saves energy, and helps things run better.

Industry Trends

Companies keep making better PoE products for new needs. They give more power for stronger devices, like AI sensors and sharp cameras. PoE works with green energy and more IoT devices. This makes networks smarter and more connected.

Smart features use AI and machine learning to fix problems before they happen. They also help share power where it is needed. Security is better with safe logins and watching network traffic. Networks can grow bigger without needing lots of new hardware.

The IEEE 802.3bt standard lets each port give up to 100W. This helps with new things like smart screens and factory robots. Better cables and shielding mean less signal loss, even with long wires. North America, Asia-Pacific, and Europe are growing fast because of smart cities and digital projects.

LED lighting with PoE will grow fast, especially in big offices and factories.

Network planners know PoE is helpful for new networks. They like how it makes setup easy and saves energy. PoE also works with smart devices. When they plan, they should think about these things:

• • Devices must follow IEEE rules to work together.
• • Check how much data the network can handle.
• • Pick the right cable type and keep cables short.
• • Make sure devices get enough power and have backup.
• • Use midspan injectors to upgrade without spending too much.

Planning well and buying strong cables helps networks stay ready for new needs.

FAQ

What devices can use PoE in 2025?

Many devices work with PoE. These include wireless access points, security cameras, VoIP phones, LED lights, and digital signs. New PoE standards can power laptops, tablets, and building systems.

How far can a PoE cable run?

A PoE cable can go up to 100 meters, or 328 feet. This length gives steady power and data. For longer cables, planners use PoE extenders or repeaters.

Does PoE affect network speed?

PoE does not make the network slower. Ethernet cables send power and data at the same time. Devices get full speed if the cable is the right type.

Is PoE safe for my devices?

PoE has safety features built in. Power Sourcing Equipment checks devices before sending power. If a device cannot use PoE, it will not get power. This keeps the network and devices safe.

What cable type works best for PoE++?

For PoE++ (IEEE 802.3bt), Cat6 or Cat6a cables are best. These cables handle more power and stay cooler. Pure copper cables work better and last longer.
