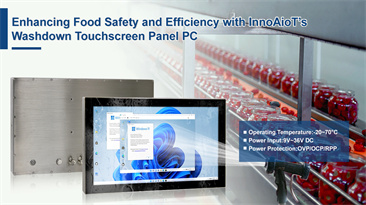

Enhancing Food Safety and Efficiency with InnoAioT’s Washdown Touchscreen Panel PC
Challenges
- • Complying with IP66/IP69K hygiene requirements for harsh washdown procedures
- • Ensuring clear and fog-resistant display visibility in humid cold storage areas
- • Maintaining I/O connectivity in environments prone to water and chemical exposure
- • Integrating with existing machine infrastructure with proper screen size and flexible mounting
Solutions
InnoAioT WPC-185WDC-12th:
- • A stainless steel, fanless, IP66/IP69K industrial touchscreen PC built for hygiene-sensitive environments.
- • 18.5" FHD display with 50,000-hour backlight life, offering superior visual clarity
- • Optical bonding PCAP touch screen for responsive, fog-free operation
- • 12th Gen Intel® Core™ i3/i5 CPU, paired with DDR5 RAM (up to 64GB) for high computing performance
- • M12 I/O ports (LAN, USB, COM) for sealed, water- and dust-proof connectivity
- • Wide operating temperature (-20°C to 70°C) and 9V–36V wide-range DC input with OVP/OCP/RPP protection
-
- • Available in SUS304 or SUS316 stainless steel housing with VESA, panel, and yoke mount support
Benefits
- • Reliable performance in extreme industrial and food-safe environments
- • Clear, durable display with anti-fog operation in refrigerated zones
- • Secure, fully sealed I/O interfaces minimizing maintenance downtime
- • ISO-compliant production and dependable delivery logistics
Company Background
The Challenges
Reliable Panel PC for IP69K Washdowns
Daily sanitation procedures required high-pressure, high-temperature washdowns using corrosive cleaning agents. Previous systems were prone to moisture ingress, leading to corrosion and failure. A fully IP66/IP69K-certified solution with robust waterproof construction was essential.
Clear Display in Humid, Low-Temperature Settings
Warehouse zones operated near freezing temperatures, and rapid ambient shifts led to fogging inside the HMI displays. Operators frequently encountered visibility and touchscreen responsiveness issues, delaying workflow and increasing error rates.
Industrial-Grade Waterproof I/O
Legacy systems with standard I/O ports suffered from water ingress and vibration-related disconnections. A reliable, industrial-grade M12 I/O solution was necessary to maintain communication stability in wet and harsh settings.
Display Size & Mounting Flexibility
The Solution

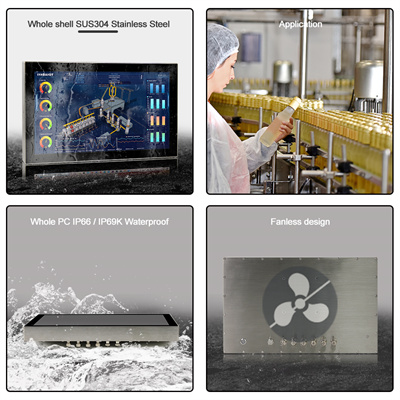

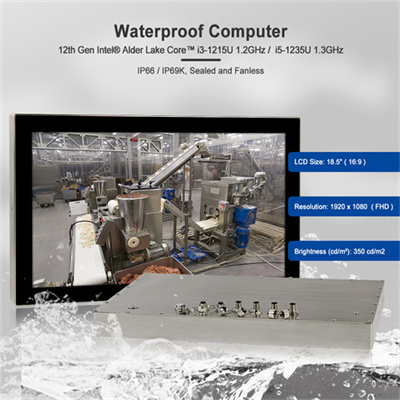

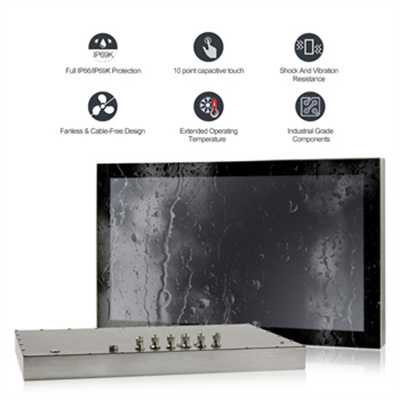

InnoAioT WPC-185WDC-12th Stainless Steel Washdown Panel PC
Designed for food-grade environments, the WPC-185WDC-12th offers uncompromising performance and sanitation compliance. Its stainless steel enclosure (available in SUS304 or SUS316) resists corrosion, high-pressure washdowns, and extreme temperatures—making it the ideal HMI for food processing, meatpacking, and cold-chain operations.
Optical Bonded FHD Touch Display
High-Performance Computing with 12th Gen Intel®
M12 I/O Ports for Sealed Connectivity
Equipped with rugged M12 connectors, including dual LAN, dual USB, and one COM port, this system ensures completely sealed, vibration-resistant connections. The waterproof design helps eliminate I/O failure due to washdowns or debris intrusion.
Flexible Mounting & Power Protection
Whether using VESA, panel, or yoke mounting, the system installs easily into varied industrial environments. The wide voltage input (9V–36V) with protections against overvoltage, overcurrent, and reverse polarity ensures uninterrupted operation.
The Benefit
Industrial-Grade Reliability and On-Time Fulfillment
Tested for extreme industrial conditions, InnoAioT delivers robust panel PC systems with dependable quality. Through its agile logistics network, the company ensures timely delivery—even for large-scale rollouts—supporting food and logistics partners with the technology they need, when they need it.
